BES Racing Engines - BES / GM LS1/LS2/LS6 Heads

BES Racing Engines now offers complete cylinder head packages. Why buy a set of heads with the wrong parts when we can build you a custom ported set of heads complete, ready to bolt on with the right parts. We can also supply you with a matching camshaft and intake. No more guess work. Our combinations are proven. From mild street to serious bracket racer, we have a combination for you.

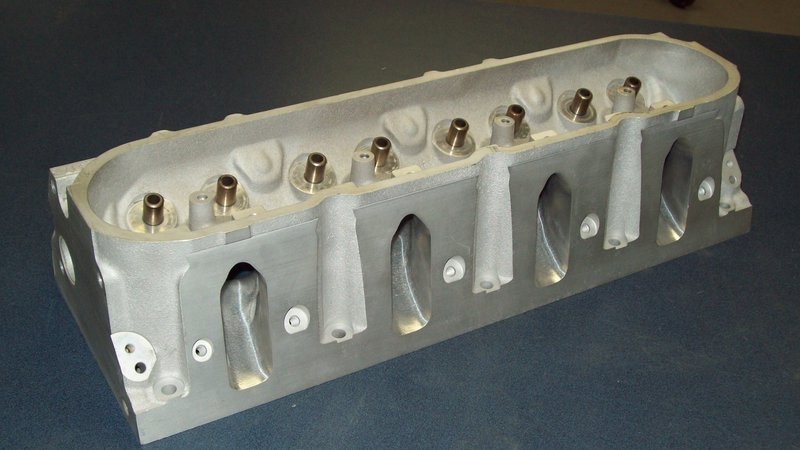

BES / GM LS1/LS2/LS6 Heads

Price

Ported stock GM castings. Includes

Labor
Full CNC Porting / Conservative on size to provide dependability, Not flow numbers
Valve Job and Surfacing

* Must Supply Your Own Cores *

We can customize these specifications and components to your application, just give us a call at 812-576-2371

Starting @ $1,150.00

Please call 812-576-2371 for details ask for Preston.

BES / GM LS2/ LS6 Heads - 317-243 Casting - Flow Numbers 242CC
	Intake	Exhaust
.200	141	119
.300	197	161
.400	251	192
.450	271	203
.500	280	213
.550	287	220
.600	293	226
.650	297	232
.700	301	235
.750	305	239
.800	307	241
.850	307.5	242
Combustion Chamber CC	66cc
BES / GM LS1 Heads - 241 Casting - Flow Numbers
	Intake	Exhaust
.200	143	106
.300	205	145
.400	243	187
.500	266	204
.600	275	216
.700	280	221
.800	285	223
Intake Valve Dia.	2.000
Exhaust Valve Dia.	1.550
BES does not build winning combinations based on flow numbers, but, everyone asks for them as a baseline, and that is why we are posting them. Flow numbers will vary from bench to bench.

We have many programs for a huge selection of domestic cylinder heads. If you don't see what you are looking for on the website, give us a call at (812)-576-2371.
